Nevertheless a successful race season and the enthusiastic feedback received from all our dealers and drivers, BIREL ART has worked even harder to further improve our karts and related components aiming at increasing drivability and performances without changing the technical characteristics and baseline of the 2016 models.

The initial that characterizes the new models for 2017 will be “B”

DR01-B SH (SHIFTER): Homologation 31/CH/20

Developed specifically for the shifter category DR01-B SH has undergone some structural changes to make it more versatile and performant.

Details:

Brake system: the brake system has been updated with different brake pad material and the adoption of cast iron brake disc D.180 to improve braking and wear.

Spindles: the spindle maintains the classic “2 piece” with the introduction of a new spindle stem made from a thicker higher grade material. The characteristic of this accessory will be to give more insertion increasing the grip on the front of the chassis. The new spindle is designated “H.”

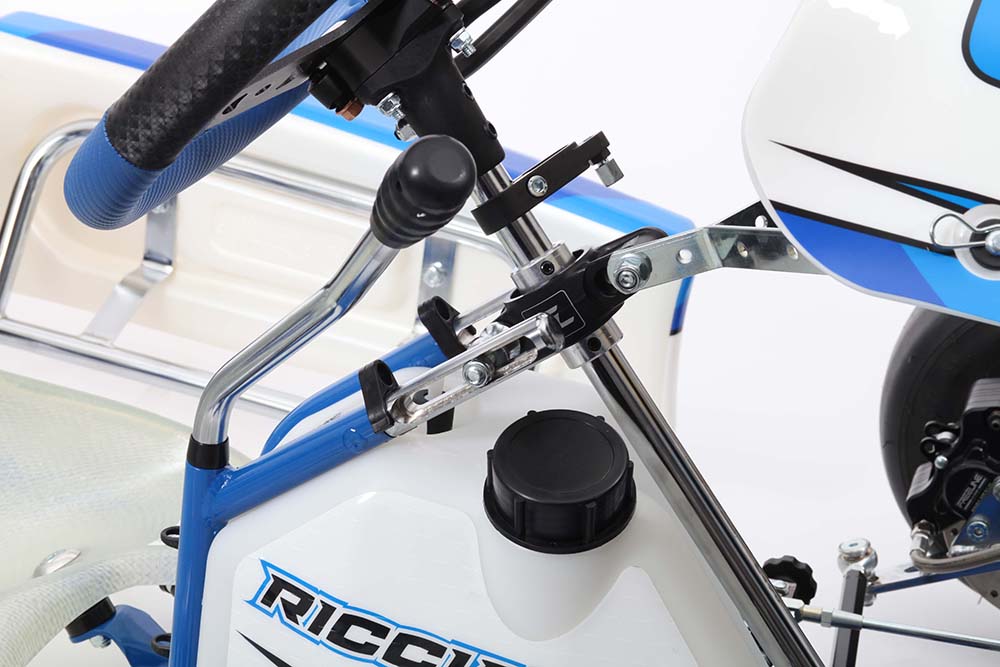

Clutch lever: the new vertically adjustable clutch lever works on rollers allowing more precise shifting, while the driver can adjust the position to suit.

Rear Axle: we have introduced the new “R” rear axle which offers a very good lateral grip,  good stability under braking and optimal traction while leaving the kart very “free”. Another novelties about the rear axle is that they will be specifically produced for:

KZ category with only 4 keys (for inner crown) and a reinforce inside where the crown is fixed. The size is 50x2x1040
KF category also with 4 keys (for external crown) in size 50x2x1020

Stickers: all the “Racing” karts will have new graphics Birel ART ‘EVO’, revised and improved for a look modern, elegant but especially captivating.

Magnesium:  magnesium hubs, fully machined: d.50×115 mm double screw besides the ones d.40×100 mm.

Also for 2017 there will be the possibility to order the karts in “FACTORY” version i.e. with hubs both front and rear in magnesium.



DOWNLOAD:

PARTS CATALOGUE | TECHNICAL DATA SHEET



Tech Specs
DR01-B SH
HOMOLOGATION 31/CH/20
FRONT STABILIZER STANDARD
REAR STABILIZER OPTIONAL
Ø TUBES D. 30
WHEEL BASE 1045
REAR WIDTH 645
FRONT WIDTH 725
LENGTH 1510
AXLE 50x2x1040 F
Ø SPINDLE D. 25
BRAKING SYSTEM HYDRAULIC RR
BRAKE POSITION REAR + FRONT
FRONT BRAKE DISC 150×12 G
REAR BRAKE DISC 180×16 G
TANK CAPACITY 10 LIT CA
STEERING WHEEL D. 340
DISK CARRIER 50 ALL. HQ
FRONT HUBS 85 ALL. or 85 MG.
REAR HUBS 50×90 ALL. or 50×90 MG.
WHEELS DF130+DF210 M
PODS FL 12/17 EVO + FP7 FRONT.

All data are subject to tolerances
